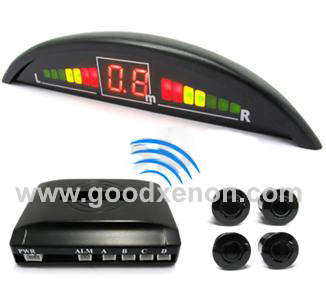

| Specifications: |
| 1. Wireless CPU to display communications, there are not any wire between the main board and the display. The distance is around 12 meter. |
| 2. Digital LED showing obstacle distance |
| 3. Alarm by Bi-Bi sound |
| 4. LED display with three colors (Red, yellow & green) |
| 5. Crescent shape digital display screen |
| 6. Equip the changeable color LED sensor |
| 7. Turn on/off the voice according to your desire |
| 8. All kinds of sensor colors and styles are available |
| 9. High quality and easy to install |
| |
| Packing Details: |
| Carton Size: 46 X31 X51cm |
| Quantity: 20 PCS/ CTN |
| G.W.: 14 KG |
| N.W.: 13.2KG |
| |
| Technical Parameters: |
| Rated Voltage: 12V DC |
| Rated Current: 50mA~180mA |
| Detecting Distance: 0.3~2.0m |
| Ultrasonic Frequency: 40KHz |
| HF Frequency: 315MHz |
| Display Working Temperature: -30~+70. C |
| |
| Alarm sound: |
| Stage |
Distance |
Area |
Sound |
Digital display |
| 1 |
160-200cm |
Safe Mode |
No sound |
1.6-2.0 |
| 2 |
100-159cm |
Safe Mode |
Bi---Bi---Bi |
1.0-1.5 |
| 3 |
40-99cm |
Alarm mode |
Bi-Bi-Bi |
0.4-0.9 |
| 4 |
0-39cm |
Danger Mode |
Bi------ |
0.0 | |
| |
| Description of changeable LED sensor |
|
|
Distance |
Color of LED sensor |
| 1 |
2.0--1.0M |
Blue |
| 2 |
0.9 -- 0.7M |
Blue/red by turns |
| 3 |
0.6--0.0M |
Red flicker automatically | |
